    AWE404 ENKODER

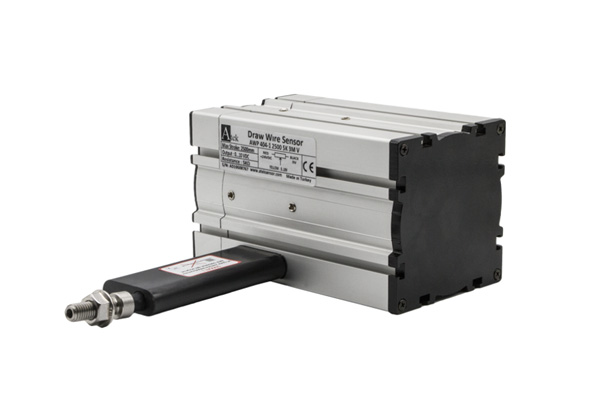

    Awe404 rope encoder 0 ... 1000 mm and 0 ... 4200 mm have different strokes (measurement) lengths.

    Incremental output.

    There is stainless steel measurement wire.

    There is an IP67 protection class.

    Compact design.

    Easy to be installed.

    It has a maximum speed of 2 m/s.

    It is resistant to shock / vibration.

    It has an aluminum anodized body.

    Resolution 0.05 mm/pulse, 0.1 mm/pulse (standard), 0.2 mm/pulse
    Working temperature -25 ° C ... +85 ° C
    Electrical connection 5 or 8x0,14 mm 2 screen cable M12 / 8 pin socket
