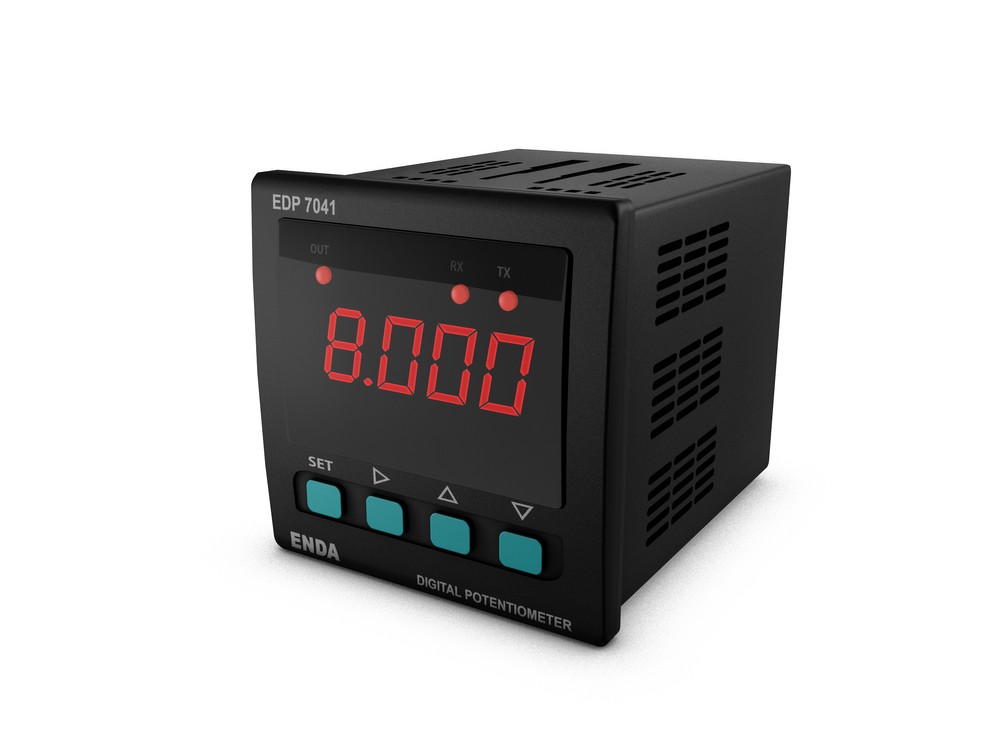

    EDP7041

    72x72 mm Ebatlı, Seçilebilir Analog Çıkışlı Dijital Potansiyometre

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün

    EDP7041

    4-digit digital display

    Easily adjustable via buttons on the front panel

    RS-485 Modbus protocol communication with the option to synchronize two or more digital potentiometers

    Preset value can be adjusted via external button inputs

    Display scale adjustable between -1999 and 9999

    Decimal point adjustable between the 1st and 3rd digit

    Adjustable minimum and maximum values for 0-10V, 0-20 mA, and 4-20 mA output

    Adjustable 'Soft On' and 'Soft Off' feature

    Selectable parameter security

    CE certified according to EN standards

    Ambient/Storage Temperature 0...50 ºC / -25...70 ºC
    Relative Humidity Operates at up to 80% humidity at 31 ºC, then linearly decreases to 50% at 40 ºC
    Protection Class According to EN 60529 standard: Front panel: IP65, Rear panel: IP20
    Altitude Maximum 2000m
    Supply Voltage 230V AC +10% -20% or 24V AC ±10%, 50/60Hz or 9-30V DC / 7-24V AC ±10% SMPS
    Power Consumption 7VA
    Connection Screw terminals
    0-10V Output Digitally adjustable 10V potentiometer output, capable of providing up to 10mA
    Accuracy: 0.1% Resolution: 1mV
    Ripple: Maximum 30mV
    Output transition from 0 to 10V: Maximum 300ms
    0-20mA Output Digitally adjustable 20mA potentiometer output, capable of providing up to 12V voltage
    Accuracy: 0.1% Resolution: 2μA
    Ripple: Maximum 60μA
    Output transition from 0 to 20mA: Maximum 300ms
    Mounting Type Inserted into the panel by compression
    Dimensions W72xH72xD97 mm
    Weight Approximately 350g (including packaging)
    Enclosure Materials Self-extinguishing plastics used
