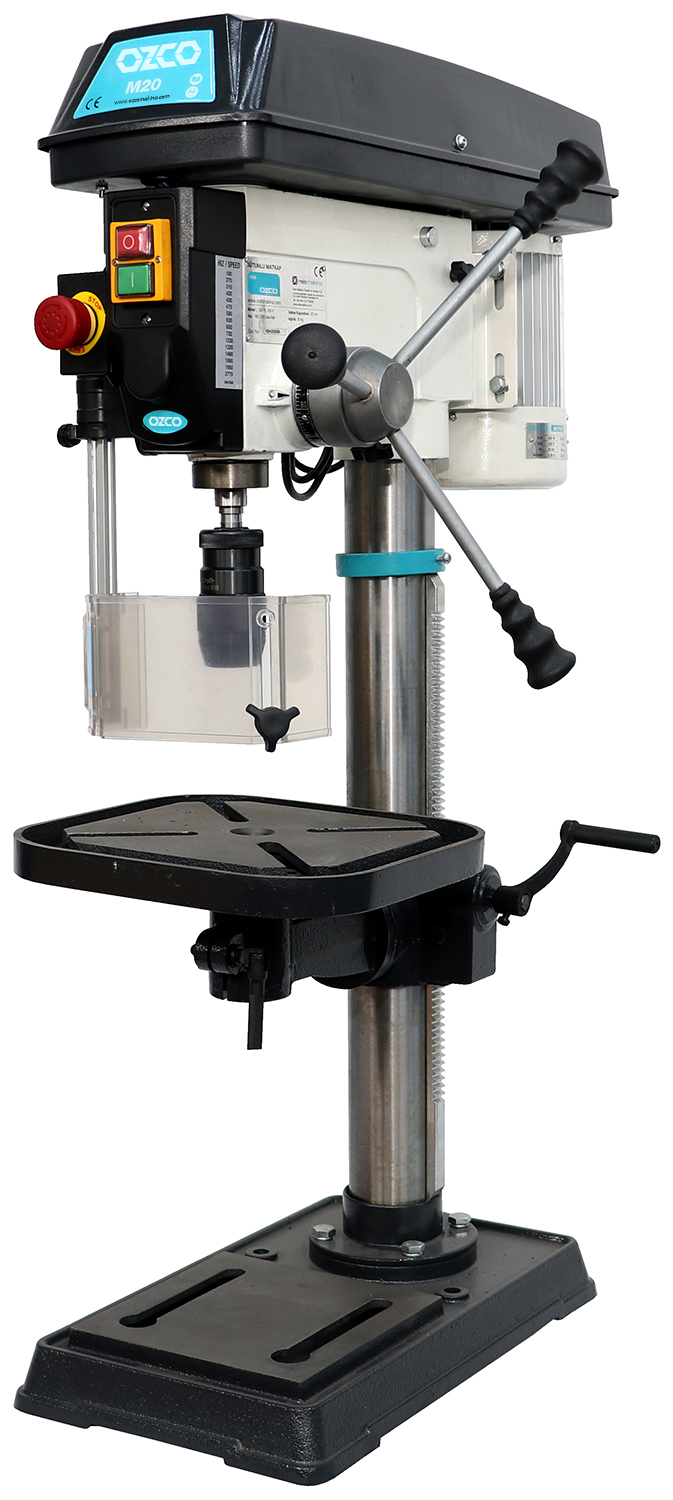

    M20 Column Drilling Machine

    The M20 Column Drilling Machine is an industrial product that offers durability, safety, and high precision. It is designed in compliance with CE standards.

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    M20 COLUMN DRILLING MACHINE

    Compliant with CE standards

    Emergency Stop Button

    Guard/chuck protector with safety switch

    Belt-pulley cover with safety switch

    Height-adjustable guard

    Dual-sided motor belt tension adjustment

    Durable, high-efficiency copper-wound motor

    Cross "X" channel table

    Depth measurement and locking system

    Ergonomic rubber grip handle for easy holding

    Aluminum belt pulley cover

    High-quality cast table

    Cast table that can rotate 360° and tilt ±45°

    Precision keyless chuck

    Cast base providing low vibration and stable operation

    DELIVERY CONTENT

    MK2-B16 Morse taper

    3-16mm B16 hand-tight chuck

    2 T-slot nuts

    Optional Accessories

    110013: 1-13mm B16 keyed chuck

    110016: 3-16mm B16 hand-tight chuck

    110102: MK2-B16 drill Morse taper

    150125: 125 mm drill vice

    190002: MK2 automatic tapping M2-M7

    Motor Power 550 W, 230 V w
    Operation Type Belt-driven
    Drilling Capacity 20 mm
    Distance Between Spindle and Column 180 mm
    Spindle Taper MK2
    Spindle Travel/Stroke 85 mm
    Speed 180-2770 rpm
    Gear Steps 16
    Table Size 290x290 mm
    T Slot Size 14 mm
    Table Rotation ±45° / 360°
    Distance Between Spindle and Table 435 mm
    Distance Between Spindle and Base 610 mm
    Base Size 460x272 mm
    Column Diameter 72 mm
    Length x Width x Height 650x360x1006 mm
    Net Weight 60 kg
