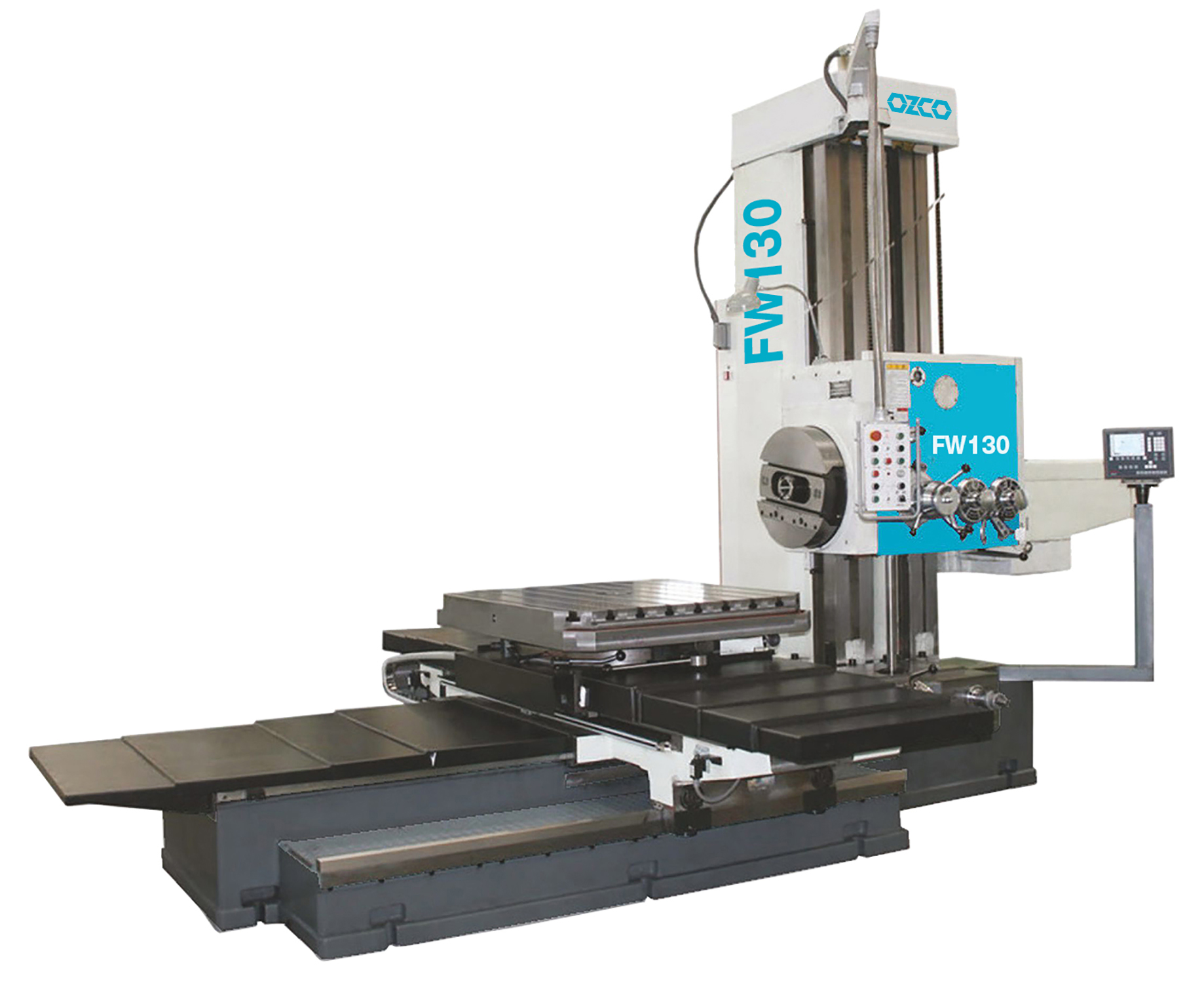

    FW130 Borverk Bench

    This machine offers high performance with its high-quality casting and strong structure, and features automatic lubrication, a cooling system, and a digital coordinate reader.

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün

    FW130 BORVERK BENCH

    High-quality casting

    Strong body, rigid structure

    Special bearing system that extends Y-axis movement

    High-quality shaft bearings

    Special spindle/shaft made from high-quality steel alloy

    Easy-to-use ergonomic control panel

    Automatic lubrication

    Cooling system

    SHIPMENT CONTENT

    Newall Brand Digital Coordinate Reader on X, Y axes

    Reduction Sleeve ISO50/MK5

    M8-M24 Guide Pulling Shaft

    Drilling Shaft

    Chuck Set

    Tooling

    OPTIONAL ACCESSORIES

    Counter support (Z-axis can be used up to 850mm with support)

    Motor Power 15 KW
    Shaft Diameter 130 mm
    Shaft Taper ISO 50
    Shaft Speed 6.6-755 rpm
    Table Longitudinal (X) Movement 2000 mm
    Table Transverse (Y) Movement 1600 mm
    Head Vertical (Z) Movement 2000 mm
    Table Dimensions 1600x1400 mm
    Table Capacity 10,000 kg
    T Slot Dimensions and Quantity 28 mm / 7
    Machine Dimensions (LxWxH) 6560x4560x4085 mm
    Weight 35,000 kg
