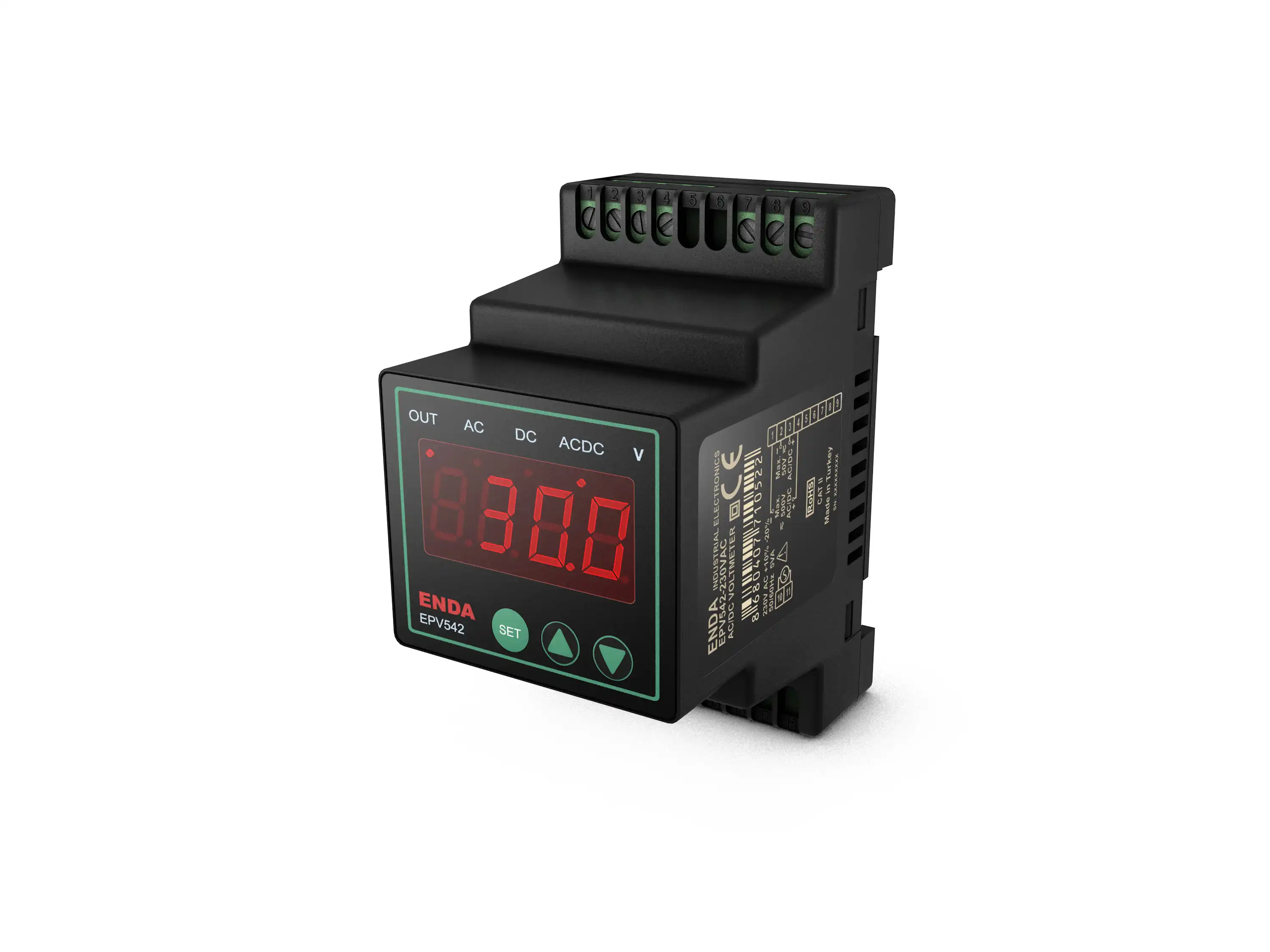

    EPV542

    54x94 mm Ebatlı, Çıkışları Opsiyonel Olarak Seçilebilen Voltmetre

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    EPV542

    Ability to display measurement values between -100...100V with one decimal place

    For measurements up to 50V AC/DC, a 10 times more accurate input allows measurement values between -50...50V to be displayed with two decimal places

    Easy adjustment using the buttons on the front panel

    Multi-functional alarm output for upper and lower limits

    Communication feature via isolated RS-485 with ModBus RTU protocol

    Selectable AC, DC, or True RMS measurement feature

    Button lock feature

    CE marked according to EN standards

    Ambient/Storage Temperature 0 ...+50 °C / -25 ...+70 °C
    Relative Humidity Up to 80% at 31°C, then linearly decreasing to 50% at 40°C
    Protection Class IP20, according to EN 60529 standard
    Height Maximum 2000m
    Supply Voltage 90-250V AC 50/60Hz or 10-30V DC / 8-24V AC
    Power Consumption 5VA
    Connection Screw terminal
    Scale AC and RMS: If C.Inp 500 is selected, 0...500V, if C.InP 50 is selected, 0...50V
    DC: If C.Inp 500 is selected, -500...500V DC, if C.InP 50 is selected, -50...50V DC
    Sensitivity 0.01V (if C.InP 50 is selected)
    0.1V (if C.InP 500 is selected and for input values greater than -100V and less than 100V)
    1V (if C.InP 500 is selected and for input values less than -100V or greater than 100V)
    Accuracy AC: ±%1 (of the full scale) (For square wave, ±%2)
    DC: ±%1 (of the full scale)
    RMS: ±%1 (of the full scale) (For square wave, ±%2)
    Input Range -500...500V (If C.InP 500 is selected, voltages over ±1250V DC can damage the device)
    -50...50V (If C.InP 50 is selected, voltages over ±125V DC can damage the device)
    Input Impedance 12mΩ for 5A
    40kΩ for 60mV
    Frequency Range DC, 10Hz - 200Hz (For square wave, 10Hz-70Hz)
    Alarm Output Relay: 250V AC, 8A (for resistive load), NO+NC
    Relay Life Without load: 30,000,000 switching; 250V AC, 8A resistive load: 100,000 switching
    Mounting Type Mounted on a TH35 rail
    Dimensions 54x94x68 mm
    Weight Approximately 250g (with packaging)
    Case Material Self-extinguishing plastics used
