    EPA942

    Emos Group Industrial Electronics Industrial Automation and Control Ammeters and Voltmeters EPA942
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps

    EPA942

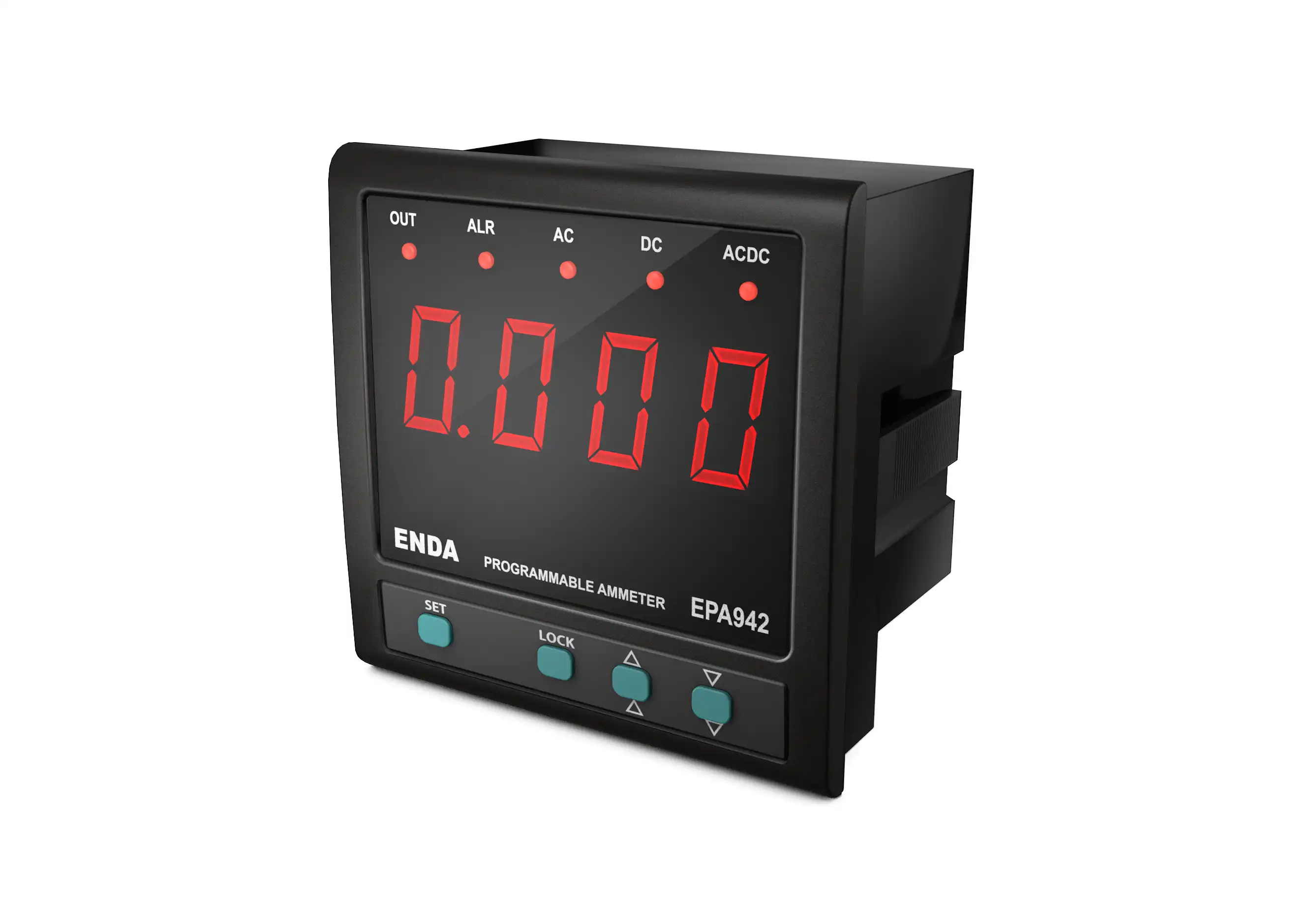

    96x96 mm Sized, Ammeter with Optional Inputs and Outputs.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    EPA942

    4-digit digital display

    Can be easily adjusted using the buttons on the front panel

    Can be used with current transformer or shunt

    Programmable scale from 5...9999A

    Multi-functional alarm output for upper and lower limits

    Multi-functional alarm output with alarm set value

    Communication capability via isolated RS-485 with ModBus RTU protocol

    Selectable AC, DC, or True RMS measurement options

    Button lock feature

    CE marked according to EN standards

    Ambient/Storage Temperature 0 ...+50 °C / -25...+70°C
    Relative Humidity Works in humidity up to 80% at 31°C, then gradually decreasing to 50% at 40°C
    Protection Class According to EN 60529 standards: Front panel: IP65, Rear panel: IP20
    Altitude Up to 2000m
    Power Supply Voltage 90-250V AC 50/60Hz or 10-30V DC / 8-24V AC 50/60Hz
    Power Consumption 7VA
    Connection Screw terminal
    Scale AC and RMS: 0...9999A (determined by c.tr.r parameter. Example: c.tr.r=5 for scale 0...5A)
    DC: -999...9999A (determined by c.tr.r parameter. Example: c.tr.r=5 for scale -5...5A)
    Sensitivity 0.001A x c.tr.r/5 (For example, for c.tr.r=5, sensitivity is 0.01A)
    Accuracy AC: ±%1 (of full scale) (±%2 for square wave)
    DC: ±%1 (of full scale)
    RMS: ±%1 (of full scale) (±%2 for square wave)
    Input Range -5...5A (damage occurs in currents over 10A)
    -60...60mV (damage occurs in voltages over 50V)
    Input Impedance 12mohm for 5A input
    40kohm for 60mV input
    Frequency Range DC, 10Hz - 200Hz (10Hz-70Hz for square wave)
    Alarm Output Relay: 250V AC, 10A (for resistive load), NO+NC
    Relay Life No load: 30,000,000 switching; 250V AC, 10A resistive load: 100,000 switching
    Mounting Method Mounted on the panel using compression
    Dimensions 96x96x50 mm
    Weight Approximately 410g (with packaging)
    Enclosure Material Made of self-extinguishing plastics
