    MAH B 58 Rotary Encoder, Multi -Tour Absolte Encoder

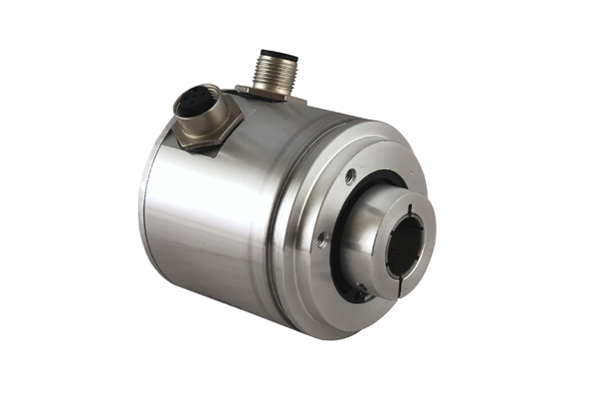

    MAH B 58 Multi -Room Absolte Rotary ENCODER measured a magnetic principle from Canopen.58 mm body diameter, absolute (absolute) measurement, semi -hollow shaft, compact design properties.

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün

    MAH 58 MULTI TURLU ABSOLUTE ROTARY ENKODER, Canopen output

    MAH B 58 Multi -Room Absolte Rotary Encoder measures absolute (absolute) measurement with a magnetic principle from canopen.

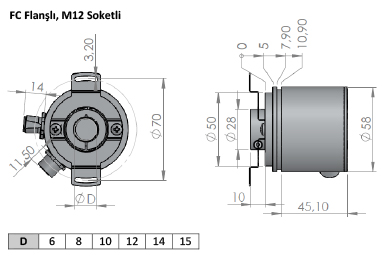

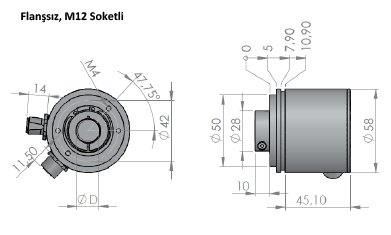

    It has a 58 mm body diameter.

    It has 6, 8, 10, 12, 14 or 15 mm semi -hollow shaft options.

    It has a sensitivity of 0.02 ° in the desired number of multiple rounds.

    There is a canopen signal output.

    It has high sensitivity.

    IP68 has a protection class.

    Working temperature -45… +85 ° C
    Electrical connection M12 5 Pin Male and M12 5 Pin Female Socket
    Feeding voltage 15… 30 VDC
    Answer Frequency 500 Hz
    Recurrenceness 0.1 °
    Truth ± 0.5 °
