    Two -line system distributors

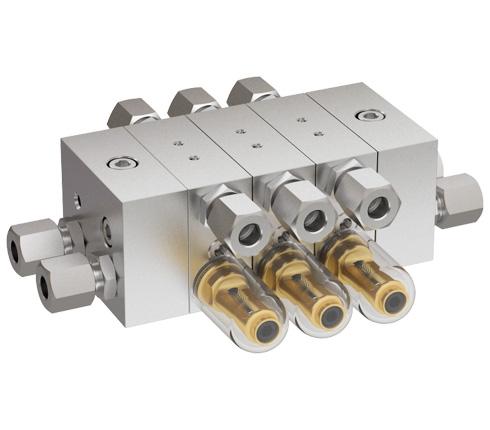

    These types of distributors, which are generally used in heavy industry, are products designed to feed the lubrication points of the machinery and equipment of large sizes at long distances.

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    Two -line system distributors

    These types of distributors, which are generally used in heavy industry, are designed to feed the lubrication points of the machinery and equipment of large sizes at long distances.

    Thanks to its modular structure, it provides flexibility.

    Each distributor is created by combining block block start-up element and intermediate slice elements.

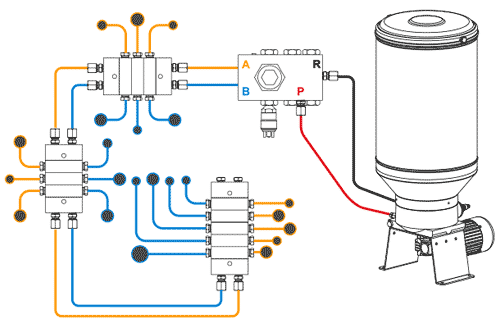

    In the principle of 2 lines, the pressure line from the pump is divided by the direction valve by the direction valve and the oil is transferred to these lines in order.

    2 Line system distributors are used on these two main lubrication lines after the direction valve.

    The dose requirement of the lubrication points is manually adjusted by the indicator in the 2 -line system distributor intermediates.

    It is possible to adjust each of the distributor block outputs for dose in different amounts.

    In addition to the dose adjustment with the indicator, it is used to follow the eye whether the lubrication is performed at that point.

    In the principle of a two -line lubrication system, the direction valve that sends the pressurized oil line from the pump into the two main lubrication line is used in order.

    Two -line system distributors in modular structure are used by arrangement on two main lines coming out of the direction valve.

    The operating principle of the two -line lubrication system is based on the lubrication of the lubrication points that are connected to the other main line while feeding a main line.

    According to this basis, the lubrication of 2 main or line points is defined as a lubrication period.

    The dose requirement of the lubrication points is provided separately with the dose adjustment at two -line system distributor outputs at each point.

    This period is repeated before the time passing until the grease is lubricated (according to quality).

    This process is repeated and controlled electronically during the period of the equipment.

    Use of progressive system distributors within the two -line system

    The outputs of two -line system distributors can be divided into different dose amounts by using progressive distributors when necessary.

    At the same time, a large number of lubrication points with low amounts can be lubricated in this way.

    The use of progressive distributors in the system is determined during the design.

    WARNING !!The most important point to be considered in such applications is that the amount of fat that comes to progressive distributors will be completely divided into points.

    For this reason, progressive distributors should not be connected on the main lines that form a 2 -line system.

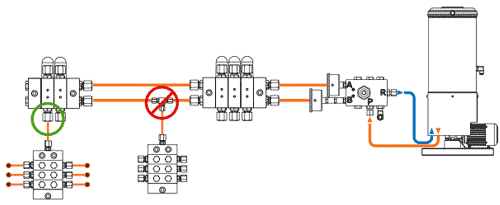

    MISAPPLICATION(In the scheme in the technical visual part, the red color is shown in the circle)

    If the progressive distributors are used within the two -line system, if the connection is made on the main lines, the entire oil in the main lines will come out of the progressive distributor.

    For this reason, the direction valve will not be able to give a pilot and 2 -line system will not work.

    Progressive distributors should not be connected to the main lines.

    Correct application(In the scheme in the technical visual part, the green color is shown in the circle)

    Progressive distributors must be connected to two -line system distributors.In this way, the entire oil in the main lines will be able to feed 2 -line system distributors.

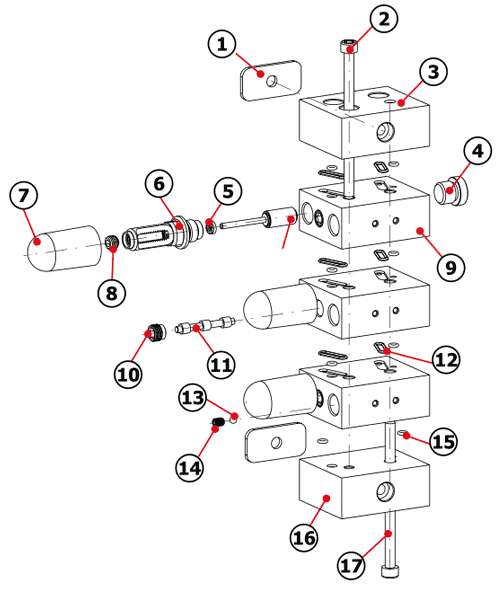

    Equipment descriptions

    1. Assembly bracket
    2. M6 Bolt
    3.
    4. Blinding plug r1/4
    5. Nutring Ø3x7x3mm
    6. Indicator Rakor
    7. Indicator Cover (Transparent polycarbonate)
    8. M8 Setskur
    9. Intermediate slice
    10. Blinding plug M10x1
    11. Direction Piston
    12. O-ring Ø12x1,5mm
    13. MISKET Ø3,5mm
    14. M5 Setskur
    15. O-ring Ø3x1,5
    16.
    17. M6 Bolt

    Working temperature -25 ° ...+80 ° C
    Working pressure The pump is the same as the operating pressure.
    Oil class NLGI 0, 1, 2, 3
    Dose Values Adjustable between 0.05cm³ and 1.5cm³
    Working principle Two -line system principle.
    Two -line system principle. It can be connected between 1 slice and 10 slices
