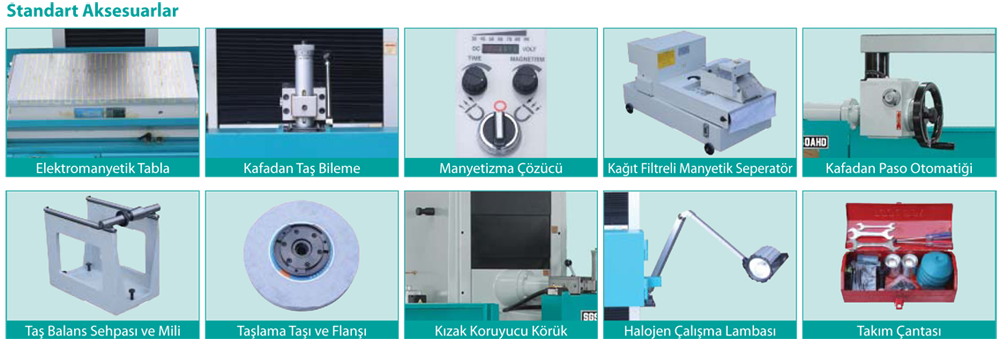

    JETCO SGS-2040AHD SURFACE GRINDER STANDARD ACCESSORIES

    Electromagnetic chuck, Head-mounted wheel dresser, Demagnetizer, Magnetic separator with paper filter, Headstock automatic feed, Grinding wheel balancing stand and arbor, Grinding wheel and flange, Guideway protective bellows, Halogen work lamp, Toolbox.

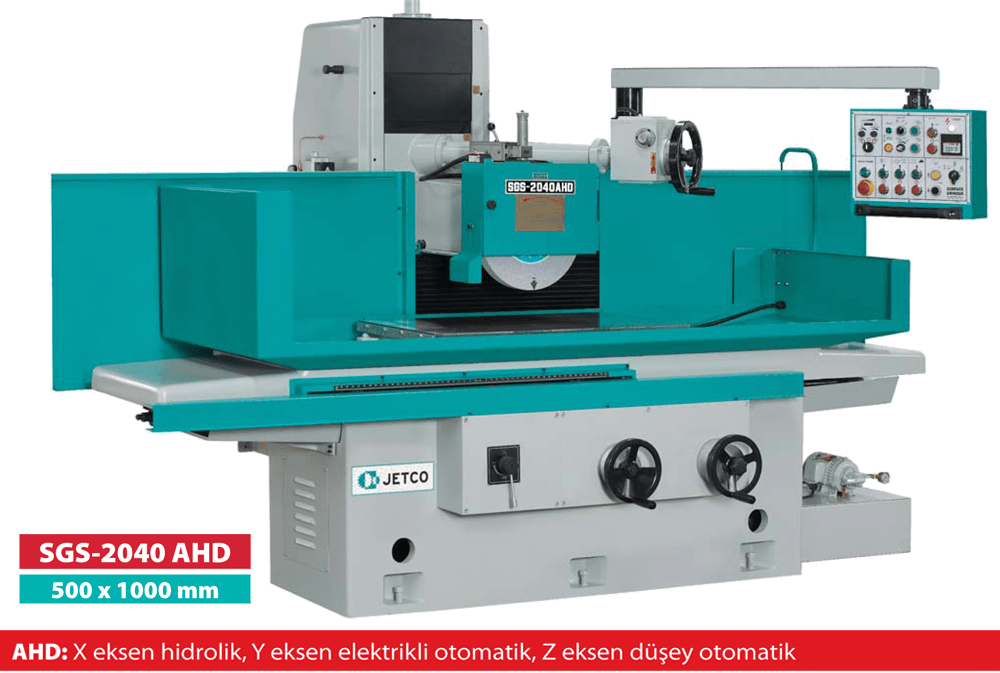

    TECHNICAL SPECIFICATIONS UNIT JETCO SGS-2040AHD SURFACE GRINDER
    Table Working Surface mm 500 x 1000
    Maximum Grinding Surface mm 500 x 1000
    Max. Longitudinal Table Travel mm 1160
    Max. Cross Table Travel mm 550
    Distance Between Table Surface and Spindle Center mm 600
    Table Speed m/min 5~25
    Auto Cross Feed Travel mm 0~25
    Vertical Feed (per graduation) mm 0.002
    Vertical Feed (per revolution) mm 0.5
    Cross Feed (per graduation) mm 0.02
    Cross Feed (per revolution) mm 5
    Micro Downfeed Adjustment (per graduation) mm AHD: 0.005
    Micro Downfeed Adjustment (per revolution) mm AHD: 0.05
    Longitudinal Feed Adjustment mm 150~1100
    Cross Feed Adjustment mm 0~510
    Spindle Motor HP 10 x 4P
    Hydraulic Pump Motor HP 5 x 4P
    Cross Feed Motor HP 1/4 x 6P
    Downfeed Motor HP 1/2 x 4P
    Grinding Wheel mm 405 x 50 x 127
    Spindle Speed rpm 1450
    Coolant Motor HP 1/8
    Maximum Load Capacity kg 1000
    Net Weight kg 4500
    Gross Weight kg 5000
    Packing Dimensions mm 3370 x 2280 x 2220
