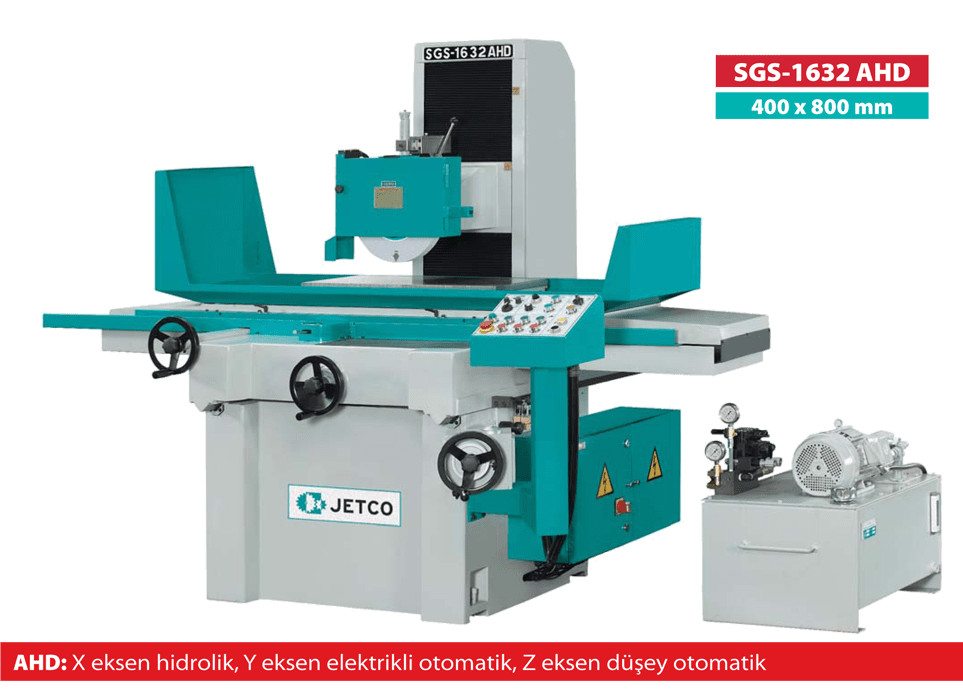

    JETCO SGS-1632AHD SURFACE GRINDER STANDARD ACCESSORIES

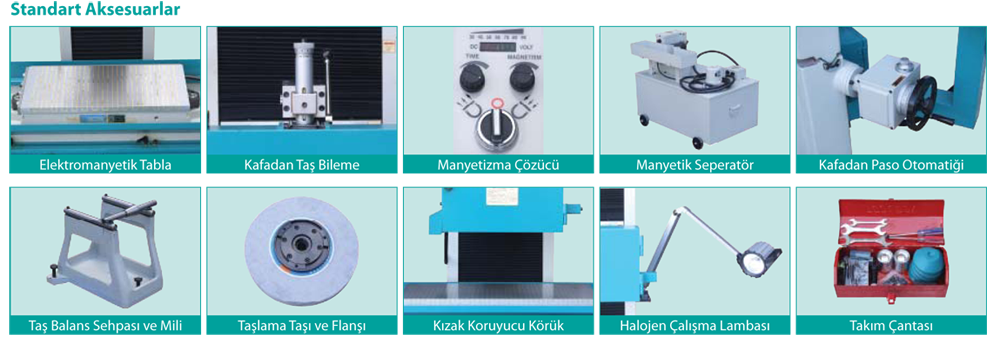

    Electromagnetic chuck, Head-mounted wheel dresser, Demagnetizer, Magnetic separator, Headstock automatic feed, Grinding wheel balancing stand and arbor, Grinding wheel and flange, Guideway protective bellows, Halogen work lamp, Toolbox.

    TECHNICAL SPECIFICATIONS UNIT JETCO SGS-1632AHD SURFACE GRINDER
    Table Working Surface mm 400 × 800
    Maximum Grinding Surface mm 406 × 812
    Max. Longitudinal Table Travel mm 960
    Max. Cross Table Travel mm 450
    Distance Between Table Surface and Spindle Center mm 620
    Table Speed m/min 6~25
    Auto Cross Feed Travel mm 0~12
    Vertical Feed (per graduation) mm 0.005
    Vertical Feed (per revolution) mm 1
    Cross Feed (per graduation) mm 0.01
    Cross Feed (per revolution) mm 4
    Micro Downfeed Adjustment (per graduation) mm AHD: 0.005
    Micro Downfeed Adjustment (per revolution) mm AHD: 0.05
    Longitudinal Feed Adjustment mm 50~812
    Cross Feed Adjustment mm 0~406
    Spindle Motor HP 7.5 x 4P
    Hydraulic Pump Motor HP 2 x 6P
    Cross Feed Motor HP 1/5 x 6P
    Downfeed Motor HP 1/4 x 6P
    Grinding Wheel mm 355 x 50 x 127
    Spindle Speed rpm 1450
    Coolant Motor HP 1/8
    Main Collector Motor HP 1/2 x 2P
    Net Weight kg 2800
    Gross Weight kg 3150
    Packing Dimensions mm 2780 x 2210 x 2250
