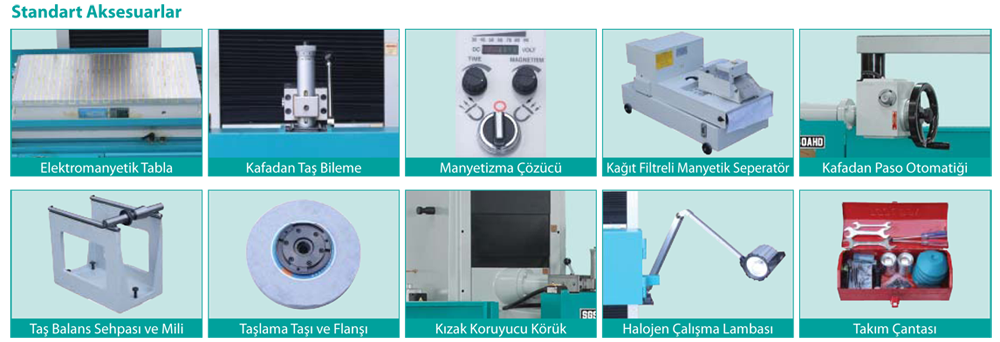

    JETCO SGS-2060AHD SURFACE GRINDER STANDARD ACCESSORIES

    Electromagnetic table, Headstock grinding, Magnetism neutralizer, Paper filter magnetic separator, Headstock auto-feed, Grinding wheel balancing stand and spindle, Grinding wheel and flange, Slide protective bellows, Halogen work lamp, Tool kit

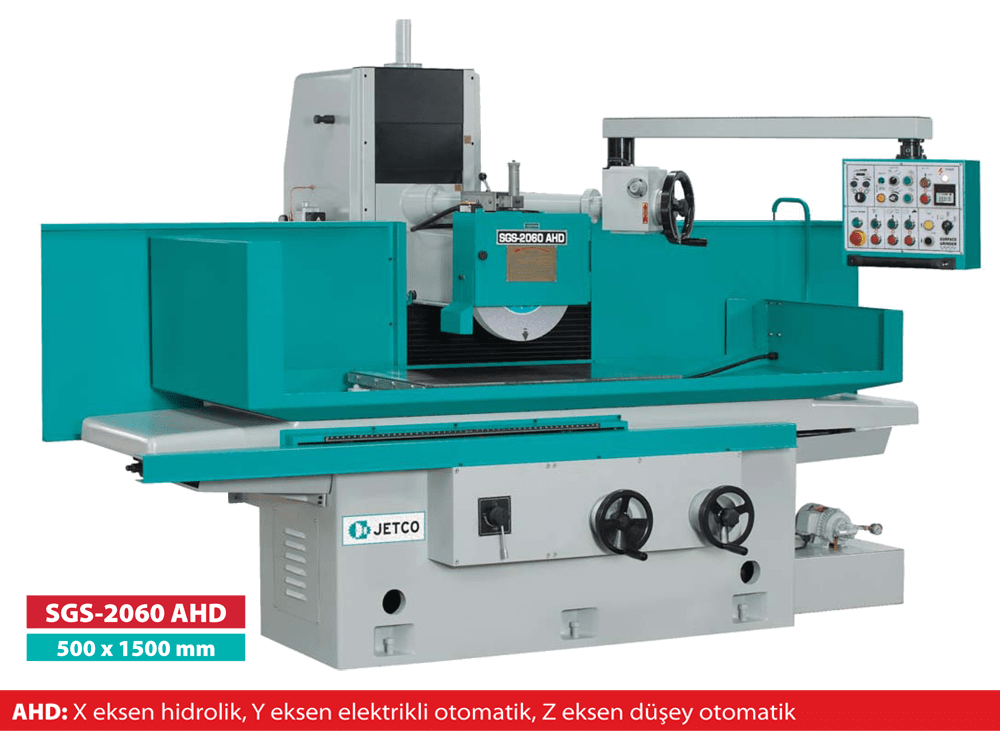

    TECHNICAL SPECIFICATIONS UNIT JETCO SGS-2060AHD SURFACE GRINDER
    Table Working Surface mm 500X1500
    Maximum Grinding Surface mm 500X1500
    Maximum Horizontal Movement of Table mm 1650
    Maximum Crosswise Movement of Table mm 550
    Distance Between Table Surface and Work Spindle mm 600
    Table Speed m/min 5~25
    Automatic Cross Feed of Saddle mm 0~25
    Vertical Movement (1 increment) mm 0.002
    Vertical Movement (1 revolution) mm 0.5
    Cross Feed Movement (1 increment) mm 0.02
    Cross Feed Movement (1 revolution) mm 5
    Down Feed Micro Adjustment (1 increment) mm AHD: 0.005
    Down Feed Micro Adjustment (1 revolution) mm AHD: 0.05
    Linear Feed Adjustment mm 150~1600
    Cross Feed Adjustment mm 0~510
    Spindle Motor HP 10 x 4P
    Hydraulic Pump Motor HP 5 x 4P
    Cross Feed Motor HP 1/4 x 6P
    Down Feed Motor HP 1/2 x 4P
    Grinding Wheel mm 405 x 50 x 127
    Spindle Speed rpm 1450
    Coolant Motor HP 1/8
    Maximum Load Capacity kg 1200
    Net Weight kg 5000
    Gross Weight kg 5500
    Package Dimensions mm 4580 x 2280 x 2220
