    SG510 NC Surface Grinding Machine

    Touchscreen Siemens PLC control system and servo motor supported Z-axis feed. 0.001 mm pass accuracy, robust cast body, and NSK P4 bearings for superior durability. Centralized lubrication, CE compliance, and ABB motor for reliable performance.

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

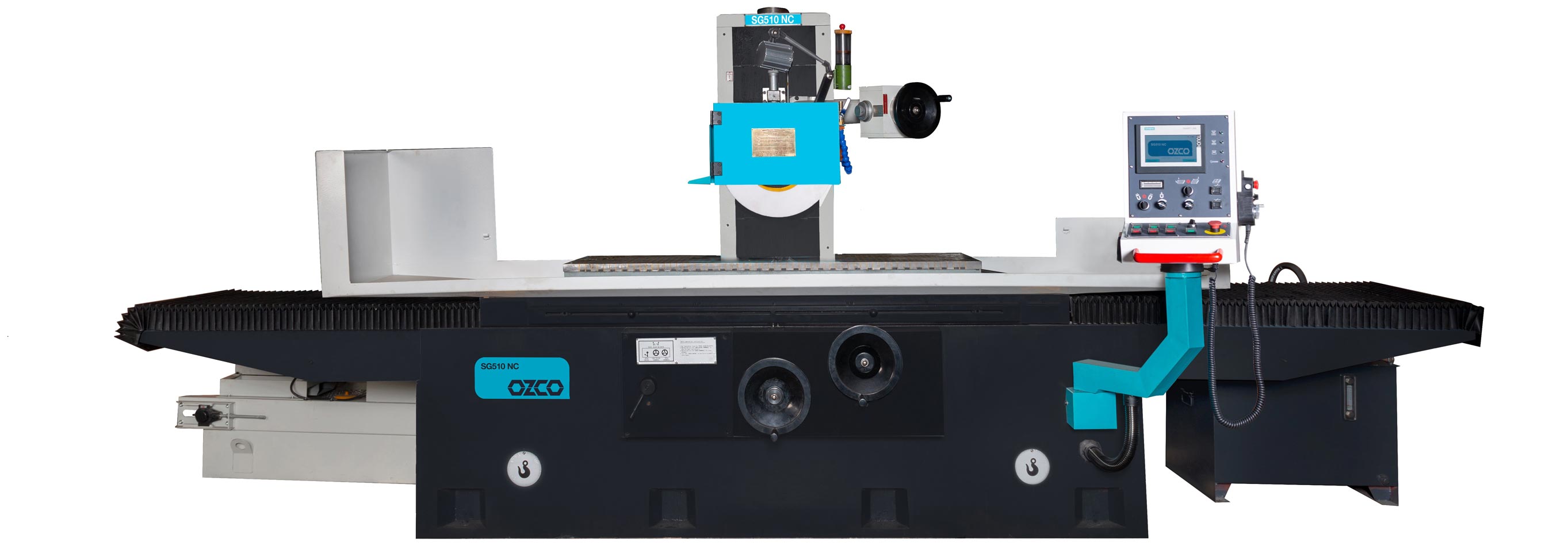

    SG510 NC SURFACE GRINDING MACHINE

    Touchscreen SIEMENS PLC control system and servo motor-driven vertical (Z-axis) feed

    Automatic pass accuracy up to 0.001 mm

    Hydraulic X-axis

    Powerful cast iron body, rigid structure

    High precision NSK P4 type bearings used in the grinding spindle for long life

    V-type slides providing long life and consistent accuracy

    Hardened and ground table slides

    Slides with Teflon-laminated ways

    Central automatic lubrication system

    Separate hydraulic tank preventing heat and vibration transfer to the machine

    Well-organized and easily accessible electrical panel

    Adjustable magnetic chuck

    Safe control panel operating with 24V voltage

    Compliant with CE standards

    Spindle motor: ABB brand

    Spindle bearing: Japanese NSK brand P4 grade precision ball bearing.

    Table Y-axis spindle: P5 class precision ball spindle

    Electrical system: SIEMENS

    Main hydraulic system: TAIWAN

    SHIPPING CONTENTS

    Grinding wheel

    Grinding flange

    Balancing bench

    Balancing shaft

    Hydraulic oil tank

    Resting bolt

    Head-mounted grinding pencil

    Paper-filtered magnetic separator

    Magnetic table

    Cooling tank

    Lighting

    Clamps

    Accessories

    Spindle Motor Power 7.5 kW, 400 V
    Table Dimensions 500x1000 mm
    Table Longitudinal Hydraulic Travel 1140 mm
    Table Cross Manual Travel 540 mm
    Distance Between Spindle and Table 590 mm
    Table Load Capacity (max.) 700 kg
    T Slot Dimensions 3x16 mm
    Table Feed Speed 5~25 m/min
    Y Axis Handwheel Feed Increment 0.02 mm
    Y Axis Handwheel One Revolution 5 mm
    Automatic Y Axis Movement 0.5~12 mm
    Y Axis Feed Speed 1250 mm/min
    Grinding Wheel Dimensions, Diameter x Width x Hole Diameter 355x40x127 mm
    Spindle Speed 1450 RPM
    Z Axis Handwheel Feed Increment 0.001 mm
    Z Axis Handwheel One Revolution 0.1 mm
    Automatic Pass Movement 0.001~1
    Z Axis Feed Speed 210 mm/min
    Hydraulic Motor Power 2.2 kW
    Dust Collection Motor Power 550 W
    Cooling Motor Power 90 W
    Y Axis Feed Motor Power 370 W
    Z Axis Motor Power 1.5 W
    Occupied Area Dimensions 4445x2200 mm
    Packaging Dimensions 3400x2265x2250 mm
    Net Weight 5000 kg
    Gross Weight 6000 kg
