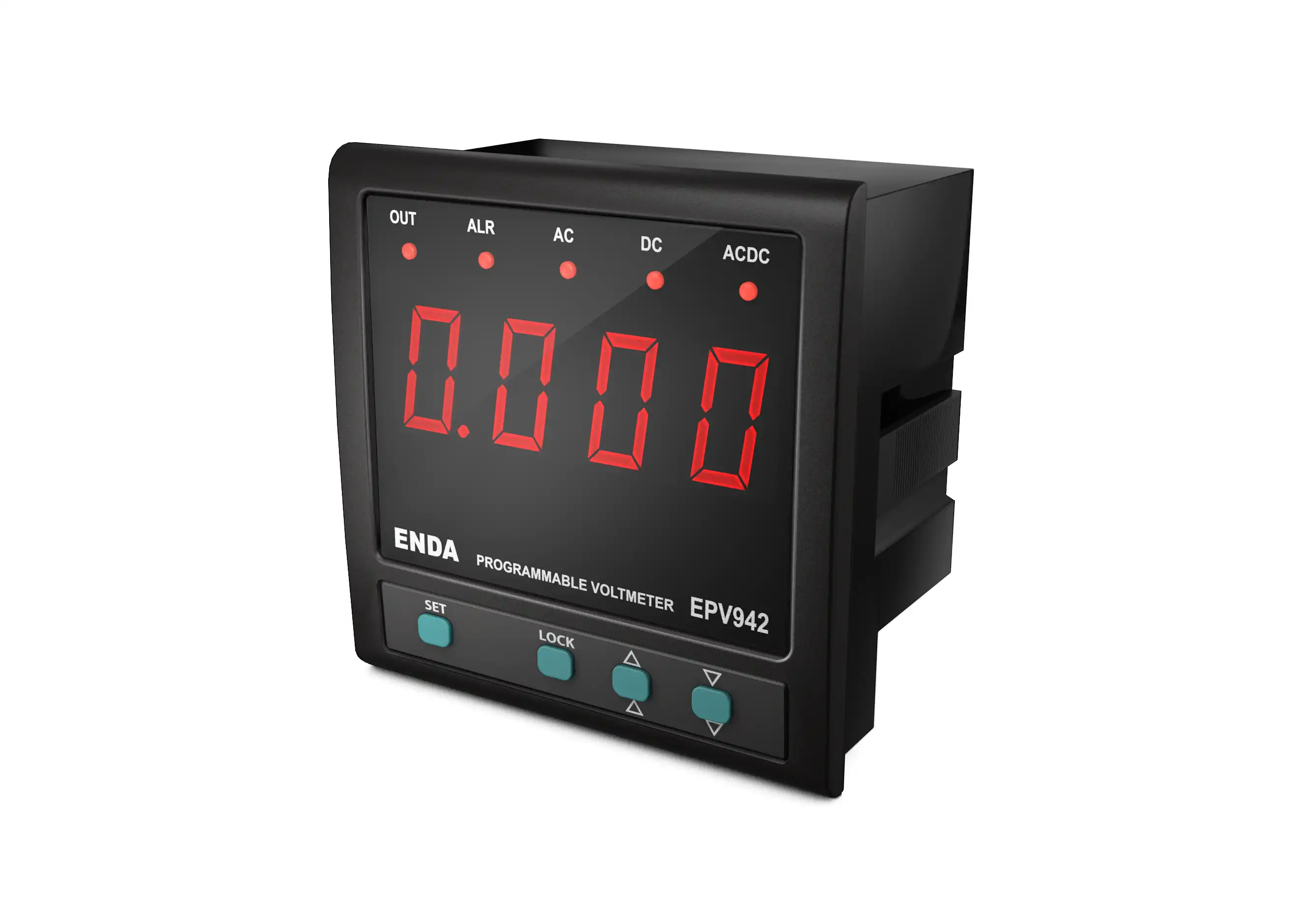

    EPV942

    96x96 mm Size, Voltmeter with Optional Output Selection

    PDF

    Whatsapp
    Emos Group Electronic Machinery Industry | INDUSTRIAL ELECTRONICS, Linear Scales, Sensors, Flow Meters, Central Lubrication Systems, Rotary Encoders, Couplings, Indicators, Potentiometers, Industrial Automation and Control, MACHINE TOOLS, Surface Grinding, EDM Erosion, Band Saws, Boring Machines, Vertical Shapers, Slotting Machines, Tapping Machines, Guillotines, Welding, Compressors, 3D Printers, CNC, Lathe, Milling, Drilling, Presses, Laser, Tool Grinding, QUALITY CONTROL, Single-Axis Measuring Tables, 2-Axis Measuring Tables, 3D Coordinate Measuring Machines, Nuve Coordinate Measuring Tables, Meter Calibration Tables, Length Measuring Tables, Profile Projectors, Video Measuring Devices, Height Gauges, DIGITAL MEASUREMENT SYSTEMS, Digital Measuring Scales, Digital Indicators, Reader Sensors, Digital Measurement System Packages, Battery-Powered Digital Measurement Systems, CNC SPARE PARTS, 3D Sensor, Test Calibration, Spindle Encoder, Battery, Relay, Lubrication Pumps, Foot Pedal, Sensors, Electronic Modules, Switch, Resistor, Power Supplies, Cables, Servo Motors, Encoders, Probes, Magnetic Chucks, Dividers, Handwheels, Mode Switches, Rotary Joints, Slideway Oil Separators, Pulstat Holders, Card Holders, MACHINE LIGHTING, CNC LED Lighting Lamps, Glass Tube LED Lamps, Fluorescent Glass Tube Lamps, LED Lamps with Articulated Arms, Halogen Lamps with Articulated Arms, Flexible Body LED Lamps, Magnetic Base LED Lamps, Flexible Body Halogen Lamps, Magnifying Articulated Lamps
    Önceki Ürün Sonraki Ürün

    EPV942

    Ability to select all decimal displays based on the magnitude of the value to be displayed on the screen.

    When used with a voltage transformer, it can display values between -999...9999V.

    Easy to adjust using the buttons on the front panel.

    Multifunctional alarm output for lower and upper limits.

    Multifunctional alarm output with alarm set value.

    Communication feature via isolated RS-485 with ModBus RTU protocol.

    Selectable AC, DC, or True RMS measurement feature.

    Button lock feature.

    CE marked according to EN standards.

    Ambient/Storage Temperature 0 ...+50 °C / -25...+70°C
    Relative Humidity Up to 80% at 31°C, decreasing linearly to 50% at 40°C
    Protection Class Front panel: IP65, Rear panel: IP20 according to EN 60529 standard
    Altitude Up to 2000m
    Power Supply Voltage 90-250V AC 50/60Hz or 10-30V DC / 8-24V AC
    Power Consumption 5VA
    Connection Screw terminal
    Scale AC and RMS: 0...9999V for utrr, 0...100V for u100, 0...500V for u500
    DC: -999...9999V for utrr, -100...100V for u100, -500...+500V for u500
    Sensitivity 0.01V for u100
    0.1V for utrr or u500 for input values greater than -100V and less than 100V
    1V for utrr or u500 for input values less than -100V or greater than 100V
    Accuracy AC: ±%1 (of full scale) (±%2 for square wave)
    DC: ±%1 (of full scale)
    RMS: ±%1 (of full scale) (±%2 for square wave)
    Input Range -500...500V for u500 (damaging the device with voltages higher than ±1250V DC)
    -100...100V for utrr or u100 (damaging the device with voltages higher than ±250V DC)
    Input Impedance 870kohm
    Frequency Range DC, 10Hz - 200Hz (10Hz-70Hz for square wave)
    Alarm Output 2 Relays: 250V AC, 10A (for resistive load), NO+NC
    Relay Life No load: 30,000,000 switches; 250V AC, 10A resistive load: 100,000 switches
    Mounting Method Mounted on a panel by compression
    Dimensions G96xY96xD50 mm
    Weight Approximately 410g (with packaging)
    Case Material Self-extinguishing plastics used
